If you're having difficulty displaying AIS on your chart plotter, please follow the instructions below.
- Some old Chart plotters do not support AIS so you'll need to confirm compatibility by checking the manual for reference to AIS and/or VDM.
- Check the receiving port can be configured to 38400 baud on the chart plotter.
- Make sure it's connected correctly by simply connecting the NMEA0183 Transmit wires on the B100 (Brown is TX+, Blue is TX-) to the corresponding NMEA0183 Receive wires on your compatible Chart plotter device. You'll need to connect the positive wires together and the negative wires together. For example:
- TX+ to RX+
- TX- to RX -

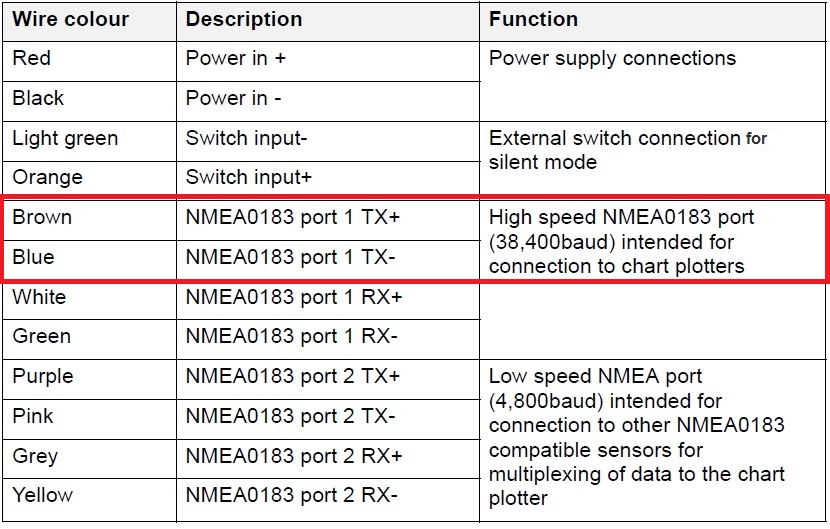

The user manual details which cables do what, but for your reference, please see below for a table explaining the connections on the B100.

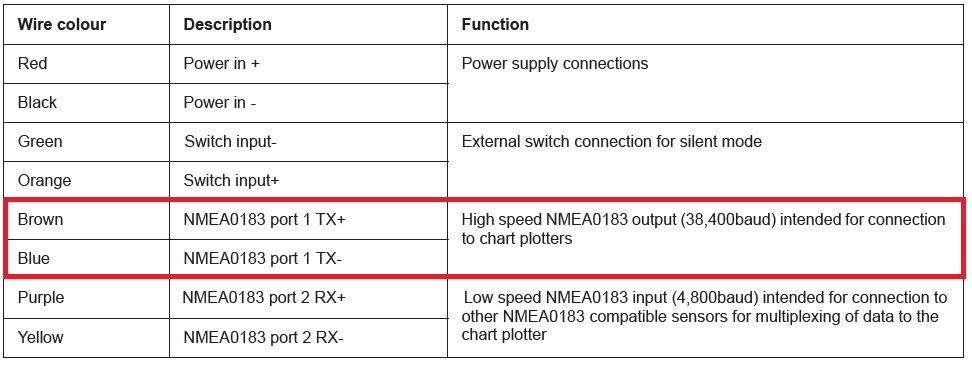

Please see below for a table explaining the connections on the B300.

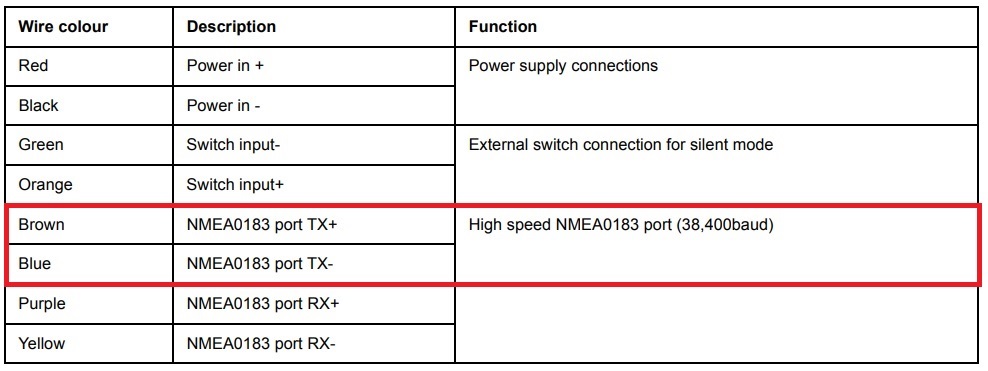

Please see below for a table explaining the connections on the B330
If you need any further assistance, please contact us at support@em-trak.com and we'll be glad to help.
