How to use iNavX with AIS B360 Transceiver?

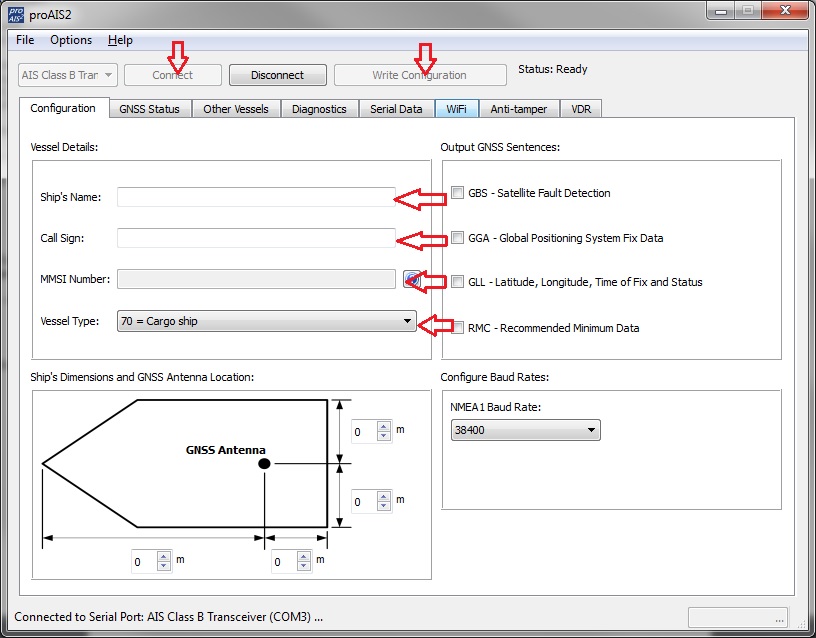

With the proAIS2 software open on your PC/Laptop:

• Select the AIS device from the drop-down list at the top of the page.
• Click Connect.
• Enter your vessel’s details, including MMSI in the relevant fields.
• Select a Vessel Type appropriate for your vessel from the drop-down list.
• Click Write Configuration to save your configuration settings.

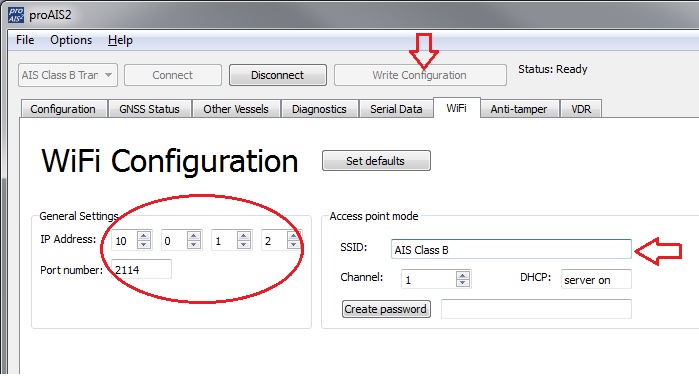

Setting the WiFi Configuration on proAIS2 software

• Under WiFi Tab General Settings;
• You can leave the default IP address or set a different IP address depending on your network.
• Next, set the Port number or leave the default in place.
• Under Access point mode;
• Give the SSID a name or leave it as default
• Click Write Configuration to save your configuration settings

Connecting iNavX to your B360 Transceiver

Go to the device home screen

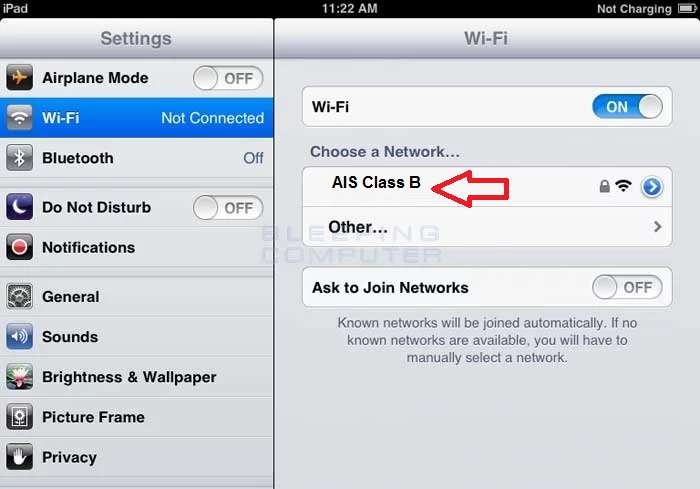

Select "Settings" > "Wi-Fi” > Set "Wi-Fi" to "ON” > Select "AIS Class B or SSID Name you set in ProAis2".

Launch iNavX

• Select Instrumentsfrom the bottom of the screen​​
• At the top left-hand side of the screen select TCP/IP

• Enter the same Host (IP address) as set on ProAIS2 software e.g "10.0.1.2"
• Enter Port number as set on ProAIS2 software e.g "2114"

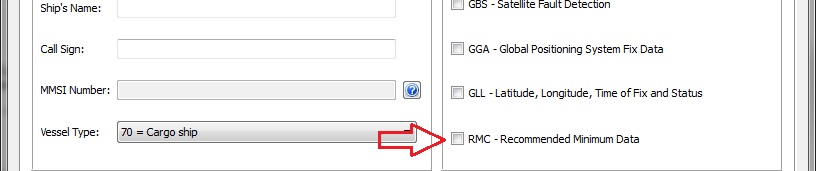

• Set "Location Services" to "ON”. Alternatively, you can enable position output from the B360 by ticking the x next to RMC- Recommended Minimum Data under the configuration tab.

• Enable "Link"
